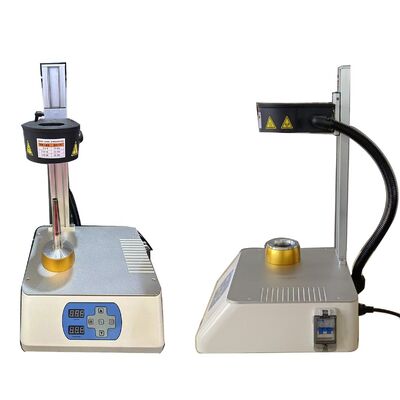

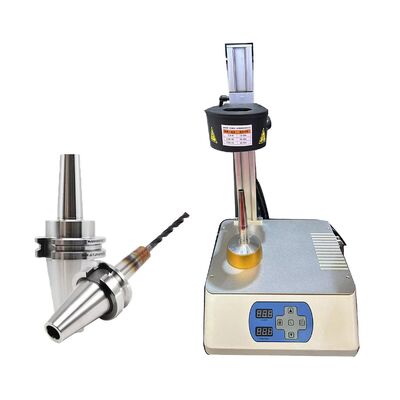

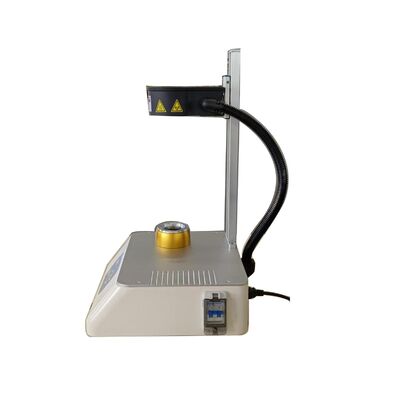

Economical and Compact Shrink Fit Machine Manual Lift Shrink Fit Heating Machine for Heat Shrink Tool Holder

Brand Name:	AMG
Model Number:	H5000Y
MOQ:	Single item
Price:	Per as your quantity
Payment Terms:	T/T,Western Union
Supply Ability:	Per as your request

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Certification:

ISO9001

Key Selling Points:

High-Accuracy, Easy To Operate

Material:

Stainless Steel

Power Source:

Manual Lift

Type:

Shrink Fit Machine

Voltage:

220V

Warranty:

3 Months

Core Components:

Other

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Heating Capacity:

Can Achieve Low-temperature Hot-packing At 300℃

Weight (KG):

12.6

Dimension(l*w*h):

360*380*660MM(14.17*14.96*25.98in)

Color:

Shiny Firish And Black

Type:

Hot Load

After-sales Service Provided:

Online Support

Warranty Of Core Components:

3 Months

Packaging Details:

Carton Boxes

Highlight:

compact shrink fit machine

manual lift shrink fit machine

heat shrink tool holder machine

Product Description

Product Style
Model	H5000S	H5000D	H5000Y
Input voltage	100-260v	100-260v	100-260v
Maximum current	20A	20A	25A
Equipment power	5KW	5KW	5KW
Power regulation	Power free regulation:1-5kw
Display interface	No touch screen		5 "touch LCD screen
Coil removal	Fixed coil, not displaceable		Change the coil in three seconds
Coil lifting mode	Hand lift	Electric lift	Electromagnetic lifting
Heating range	D3-D32		D35	D3-D12
			D58	D3-D32
Coil aperture	54MM	54MM	D35	35MM
			D58	58MM
Coil lift stroke	9-380MM	280-540MM	D35	147-483MM
			D58	135-495MM
Air source interface and air pressure	Pneumatic tube :φ10 ; Atmospheric pressure:0-0.8MPA
Tool Holder Material	Alloy steel H13, stainless steel
Equipment size	360380660MM	420420740MM	500430750MM
Equipment weight	11.6KG	19KG	25KG
Device color	White	White ,Black	White
Equipment panel	Aluminum plate with positioning hole and milling cutter groove
Memory function	No display, parameters half memory		Heating parameter memory, a key call Total intelligence
Equipment characteristics	Economical, small	Generous, safe	Multi-function, wide compatibility, easy maintenance

Looking for a Reliable Custom Tool Holder ＆ Collet Supplier?

We provide professional technical evaluation & quotation support:

Drawing/Sample Review – Our sales engineering team rigorously analyzes part drawings (dimensions, materials, processing) or replicates samples via reverse engineering to ensure manufacturability
Design Optimization – Expert advice on material selection, tolerance refinement, and process improvement to reduce costs & enhance performance
Problem-Solving – Proactive suggestions to address assembly, fit/function, or performance issues in existing parts
Dedicated Support – 1V1 technical liaison Your trusted machine tool accessories technology partner – guiding your project from design to production with precision!

Production Name	Collet, Tool Holder, Angle Head
Standard	Tool Holder: MAS403 BT, ANSI CAT, DIN69871 SK, DIN69893 HSK
	Collet: DIN6499

FAQ

1.Are you factory or trading company?: Yes, we have factory. We are professional manufacturerwith 20 years of production experience. Besides, we also do some trading.
2. Is free shipping possible?: We don’t offer free shipping service, but we will give you some discount if you buy large qty products.
3.Can you send products to our Forwarder in China?: Yes, if you have forwarder in China, I will glad to send products to him/her.
4.Do you make OEM?: Yes, we do. We have laser machine, can laser your logo and sizes on the body of milling cutter, also can print labels.
5.How about the delivery time?: According to the sizes and quantity, delivery time is different. Usually 3~7days. We can tell you exact inventory state if you need.
