| Brand Name: | AMG |
| Model Number: | AMG Efficiency with Heat Stable U Type End Mill |
| Type | End Mill, Convex Mill, Face milling, 2 flute straight bit wood router bits, Face Mill |
|---|---|
| Material | Carbide, Steel |
| Coating | TiAlN/AlTiN |
| Diameter | 1-20mm |
| Overall length | 50-150mm |
| Flute | 2 Flutes |
| Transport | Air, TNT, DHL, EMS, Express |

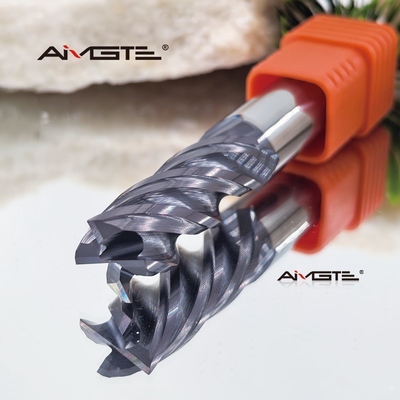

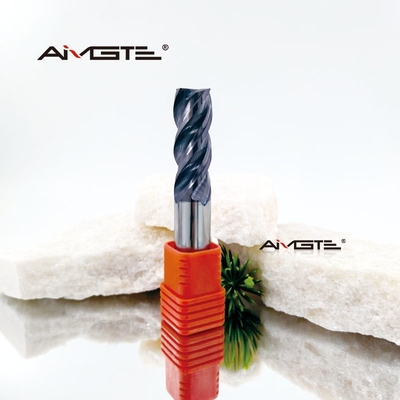

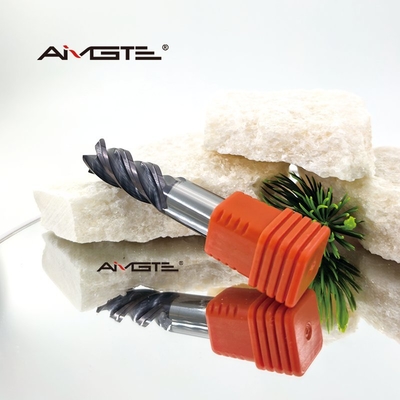

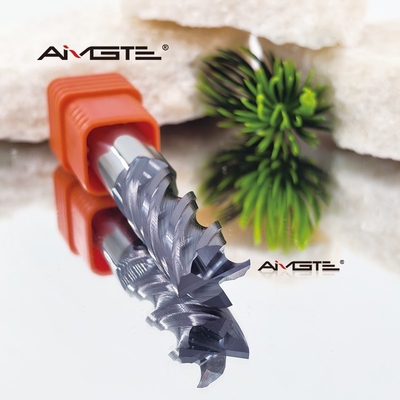

In structural component processing, selecting a tool that combines efficient chip removal with wear resistance is crucial. The AMG steel U-groove cutter is specifically engineered for high-speed, high-load steel component machining. Featuring a U-shaped groove design with ultra-fine grain carbide substrate and advanced red cap coating technology, it delivers exceptional machining stability and extended tool life.
AMG steel U-groove cutting tools utilize a large groove design that significantly improves chip removal efficiency while reducing cutting heat accumulation. The red coating provides superior oxidation and wear resistance, ensuring tool longevity and cutting stability when processing medium to high-strength steel, making it ideal for continuous batch processing operations.
| Model | Cutting Diameter (mm) | Flute Length (mm) | Shank Diameter (mm) | Overall Length (mm) | No. of Flutes | Coating |
|---|---|---|---|---|---|---|
| AMG-UF060 | 6 | 15 | 6 | 50 | 2 | Red Cap Coating |
| AMG-UF080 | 8 | 20 | 8 | 60 | 2 | Red Cap Coating |
| AMG-UF100 | 10 | 25 | 10 | 75 | 2 | Red Cap Coating |
Widely used for machining structural components in carbon steel, alloy steel, stainless steel, and similar materials.
The U-shaped deep groove structure enables rapid chip evacuation, reducing cutting zone temperatures. The red cap coating enhances thermal stability, maintaining cutting edge sharpness and smooth feed rates for extended machining operations.
