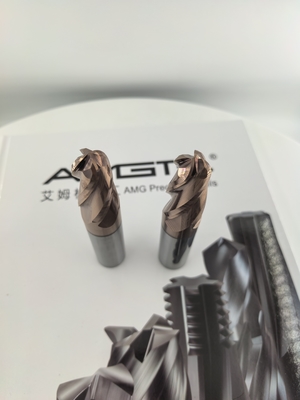

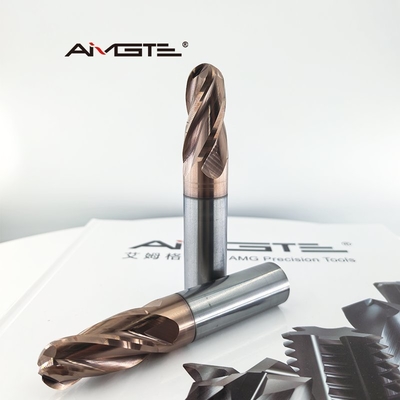

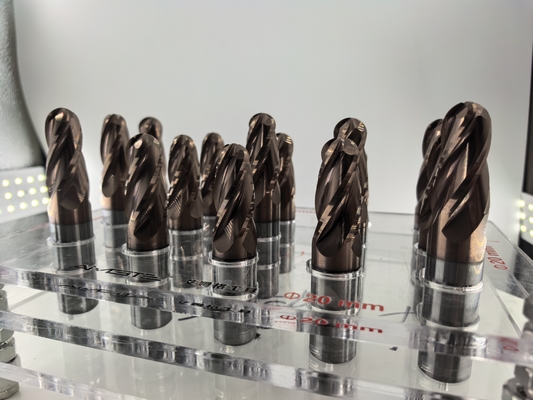

Customized Carbide Tool 4 Flute Tapered Ball Nose End Mill Anti Vibration For Precision Machining

Customized Carbide Tool 4 Flute Tapered Ball Nose End Mill Anti Vibration For Precision Machining

Brand Name:	AMG
Model Number:	Standard/Customized
MOQ:	3
Price:	Request Quote

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001

Type:

End Mill,Convex Mill,Face Milling,2 Flute Straight Bit Wood Router Bits,Face Mill

Material:

Carbide

Coating:

AlTiN,TiAIN,AlTiN/TiAlN/customized

Diameter:

0.3-20mm

Overall Length:

50-150mm

Flute:

4 Flutes

Suitable For:

Carbon Steel,Cooper.Cast Iron.Carbon Steel.Mould Steel,Wood,Cast Iron

Express:

Air,TNT,DHL,EMS,Express

Highlight:

4 Flute Tapered Ball Nose End Mill

Anti Vibration Customized Carbide Tool

Customized Carbide Ball Nose End Mill

Product Description

Customized Carbide Tool 4 Flute Tapered Ball Nose End Mill Anti Vibration For Precision Machining

Product Specifications

Attribute	Value
Type	End Mill, Convex Mill, Face milling, 2 flute straight bit wood router bits, Face Mill
Material	Carbide
Coating	AlTiN, TiAIN, AlTiN/TiAlN/customized
Diameter	0.3-20mm
Overall length	50-150mm
Flute	4 flutes
Suitable for	Carbon Steel, Copper, Cast Iron, Mould Steel, Wood
Express	Air, TNT, DHL, EMS, Express

Product Description

The AMG coated 4-flute ball nose end mill features a four-flute design that ensures optimal distribution of cutting forces, reducing vibration and improving surface finish. Nano-coating technology maintains low friction and stable chip evacuation during high-speed machining, extending tool life.

AMG's precision regrinding technology restores sharp cutting edges while applying a uniform, wear-resistant coating, enhancing tool stability under high temperatures and heavy loads. The four-flute design enables smooth chip evacuation and low vibration, protecting mold surfaces and improving finish quality.

Designed for mold machining, medical parts, automotive components, and high-precision structural parts, delivering high-efficiency, stable cutting performance.

Applications

Ideal for high-speed semi-finishing and finishing of mold cavity surfaces, medical device components, and automotive molds. Provides efficient solutions for complex profiles and curved surface machining.

Technical Specifications

Flutes: 4
Material: Ultra-fine grain carbide
Coating: TiAlN / AlTiN (customizable)
Helix Angle: 35° / 40°
Ball Nose Radius: R0.2 - R8
Applicable Machines: CNC machining centers, high-speed machines, 5-axis machines
Size Range: D1 ~ D20 (custom regrinding available)
Workpiece Materials: Steel, stainless steel, aluminum alloy, titanium alloy

Product Advantages

Enhanced rigidity with tapered body design
Superior anti-vibration performance for deep mold cavity cutting
Multi-layer coatings extend tool life and performance
Optimized for high-speed, high-precision CNC machining
Custom specifications available upon request

Frequently Asked Questions

Q: Will tool life decrease after regrinding?

A: AMG's precision regrinding and recoating process ensures reground tools perform nearly like new, offering excellent cost-performance.

Q: Can it machine stainless steel?

A: Yes, suitable for machining 304, 316, and other stainless steel grades.

Q: Do you provide OEM regrinding services?

A: AMG offers OEM regrinding and laser engraving according to customer drawings and branding requirements.
