| Brand Name: | AMG |
| Model Number: | Standard/Customized |
| MOQ: | 3 |
| Price: | Request Quote |
| Attribute | Value |
|---|---|
| Type | End Mill |
| Material | Submicron Grain Carbide, Nano Grain Carbide, High Toughness Fine Carbide |
| Coating | AlTiN, TiAIN, AlTiN/uncoated |
| Diameter | 0.3-20mm |
| Overall length | 50-150mm |
| Product name | Lollipop Cutter Perform |
| Transport | Air, TNT, DHL, EMS |
| HRC | 90±2 |

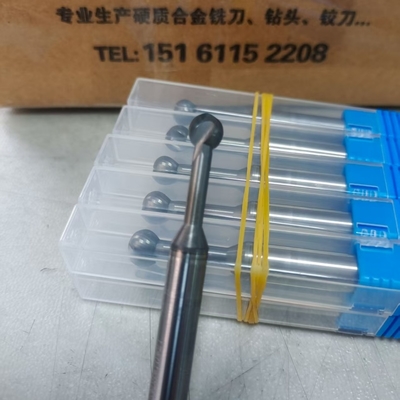

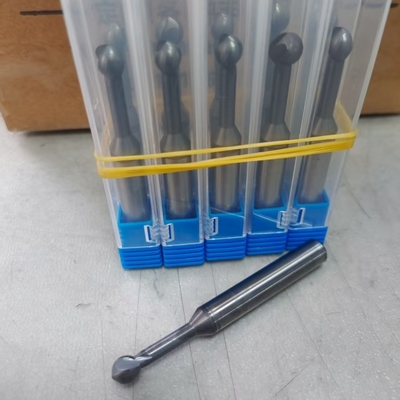

The AMG lollipop ball end milling cutter is a high-performance cutting tool featuring a unique "lollipop"-shaped tool head structure. Designed specifically for high-precision cavity machining and complex surface operations, this tool is widely used in aerospace, mold manufacturing, medical equipment, and high-end equipment manufacturing.
Manufactured from ultra-fine particle carbide material with advanced nano coating technology, this tool offers exceptional wear resistance and thermal stability. Its optimized spherical geometry enables efficient, stable, and high-quality surface machining on 5-axis CNC equipment, particularly for precision cutting in deep cavities and hard-to-reach areas.
Ideal for machining mold cavities, deep grooves, inner chamfers, freeform surfaces, and complex 3D contours. Excels in 5-axis machining operations requiring large curvature and high-precision profiling.
| Item | Specification Range |
|---|---|
| Tool Material | Ultra-fine grain carbide |
| Coating Type | Nano TiAlN, AlCrN, etc. |
| Ball End Diameter | Φ1.0mm - Φ12.0mm |
| Shank Diameter | Φ4mm / Φ6mm / Φ8mm |
| Overall Length | 50mm - 100mm |
| Machining Accuracy | ±0.005mm |
| Customization | Non-standard customization available |

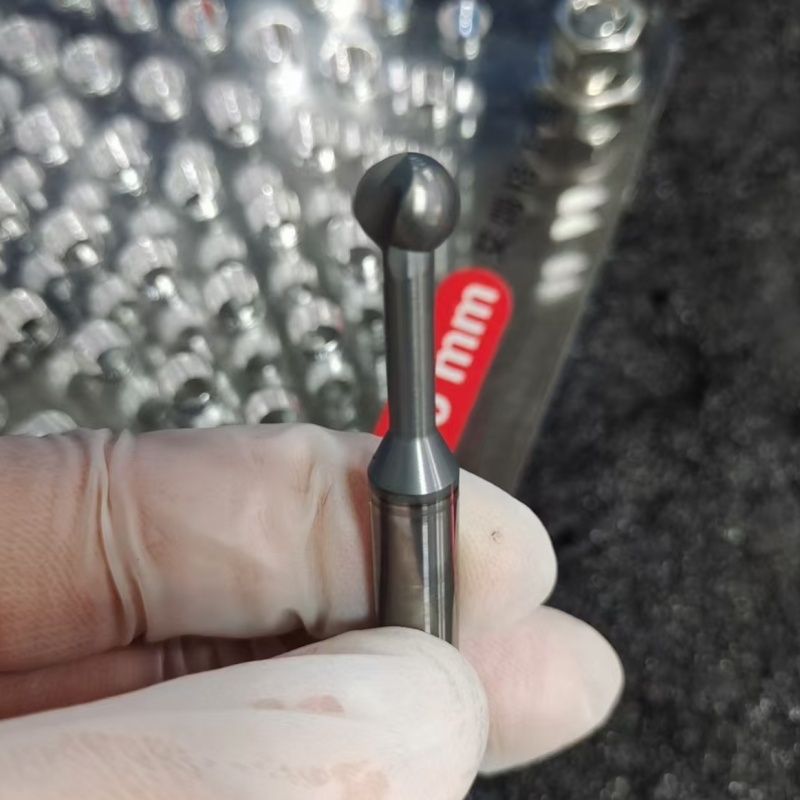

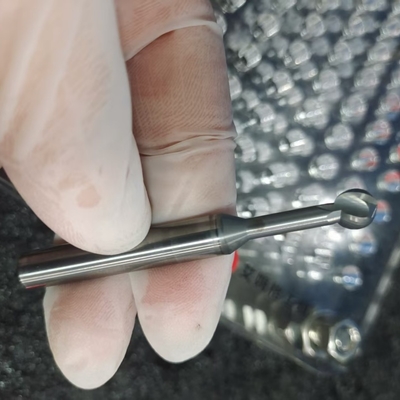

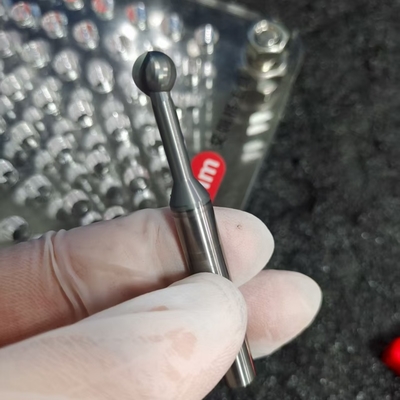

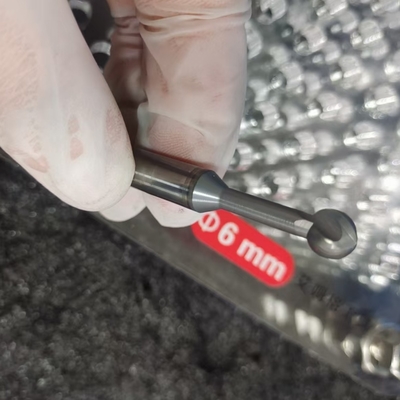

The AMG Lollipop End Mill utilizes its spherical cutting head and slender neck to achieve multi-angle engagement in tight spaces. This innovative design enables interference-free machining in deep cavities and complex areas. When combined with 5-axis control, the tool reaches areas inaccessible to traditional cutters, significantly improving machining flexibility and surface finish quality.
AMG is equipped with advanced WALTER and SAACKE 5-axis CNC grinders, plus ZOLLER high-precision inspection systems. Each tool undergoes a rigorous four-step inspection process, ensuring excellent surface finish, straightness, and chip evacuation - particularly in blind hole and soft metal applications.
