| Brand Name: | AMG |
| Model Number: | Standard/Customized |
| MOQ: | 3 |
| Price: | Request Quote |
| Attribute | Value |
|---|---|

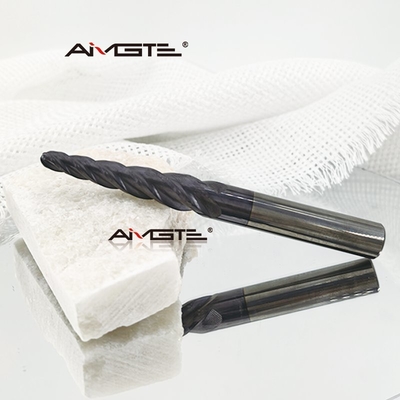

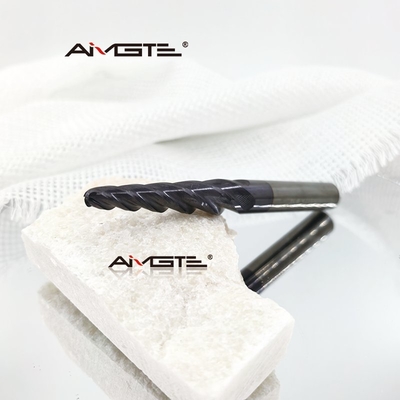

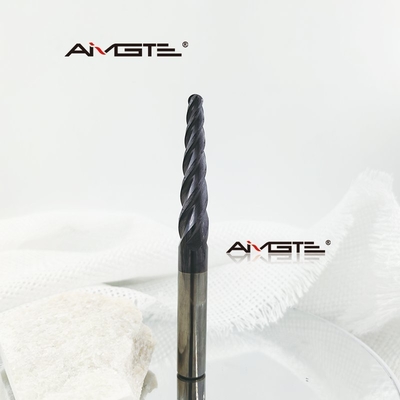

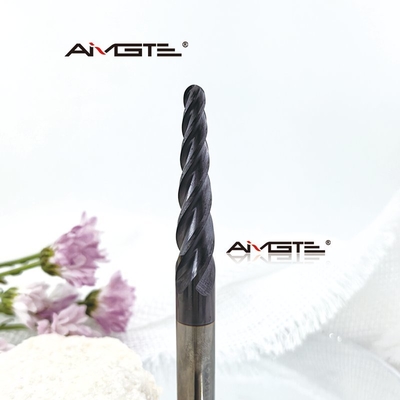

| Name | 4 6 8mm Carbide Spiral Tapered Ball Nose End Mill Router Bit |
| Application | wood, MDF, plastics, and soft metals |
| Precision | Within 0/-0.02mm |
| Features | Smooth surface finish |
| Type | Customized |
| Coating | AlTiN,TiAIN,AlTiN/TiAlN |
| HRC | HRC/55/60 |
| Transport | Air,TNT,DHL,EMS,Express |
The Tapered Ball Nose End Mill is engineered for precision 3D carving in woodworking, MDF, plastics, and soft metals. Designed with a tapered ball nose structure, it provides high strength while reducing breakage during carving and 3D profiling. Using AMG advanced grinding technology, this router bit remains excellent sharpness and stability, ensuring consistent cutting quality for CNC 3D engraving and contour machining.
Made from 0.8μm ultra-fine carbide rod, the tool offers durability and extended tool life, even under continuous carving operations. Available in 4mm, 6mm, and 8mm, it caters to different CNC router setups for professional woodworking.
| Parameter | Specification |
|---|---|
| Material | 0.8μm ultra-fine carbide rod |
| Coating | AlTiN / TiN coating |
| Flute Number | 4 flutes |
| Diameter | 4mm / 6mm / 8mm / 16mm (optional) |
| Flute Length | 35mm |
| Overall Length | 100mm |
| Helix Angle | 30° |
| Taper Angle | 30° / customized |
The tapered ball nose design allows entry into tight carving areas while maintaining rigidity, reducing deflection and breakage during deep cuts. The 30° helix angle ensures smooth chip evacuation and minimizes cutting resistance, essential for fine details in 3D woodworking and mold carving. The AlTiN or TiN coating provides heat resistance and wear protection, allowing high-speed CNC while maintaining tool sharpness.
