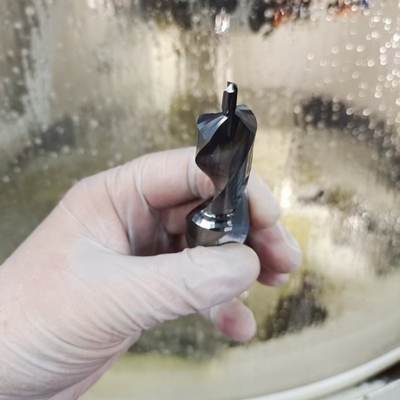

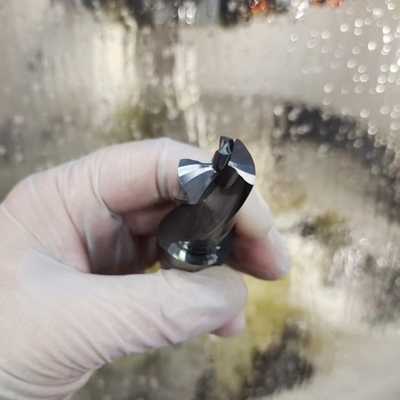

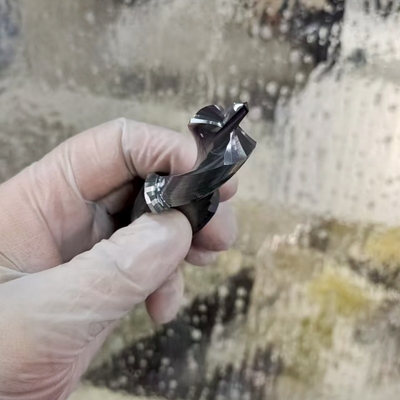

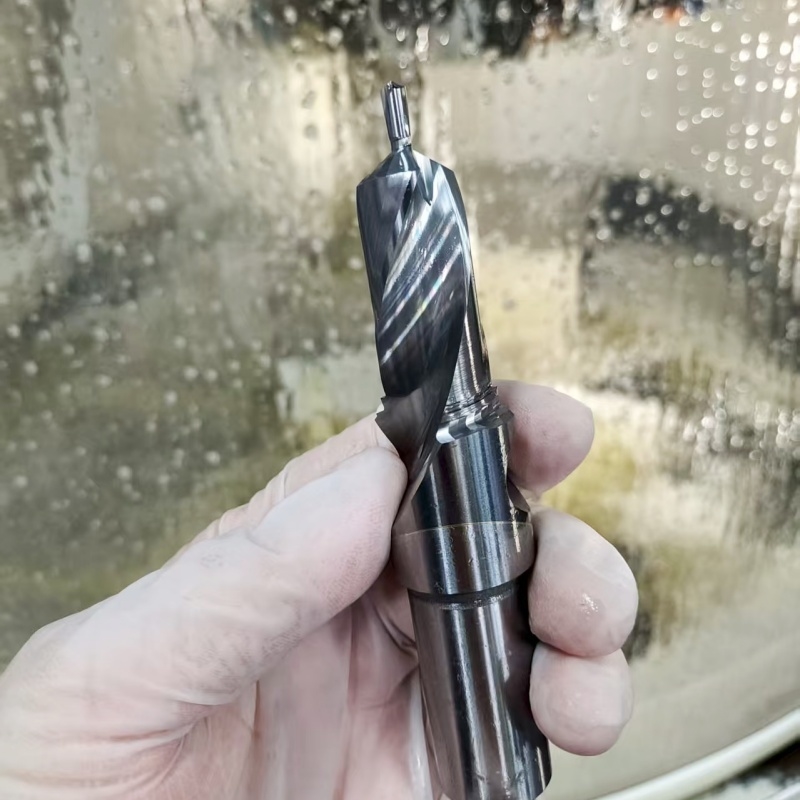

Forming Drill Optimized for High Strength Materials

In precision machining, completing multiple processes with a single tool is essential for efficient production. Modern manufacturers increasingly prefer molded drills with multi-stage structures (such as D4-D17.5-D19.24-D22.6-D24) rather than single-size bits. These integrated tools reduce tool change time, eliminate positioning errors, and significantly improve part consistency and process efficiency.

Working Principle

The AMG molding drill utilizes multiple drill tip structures with varying diameters and angles to achieve single-pass cutting and continuous forming of multiple hole sizes.

Specifications

Model	Step Hole Sizes (mm)	Overall Length (mm)	Shank Diameter (mm)	Structure Type
AMG-FD-MULTI-D24	D4 - D17.5 - D19.24 - D22.6 - D24	85-120	12-16	Multi-step Composite Forming Drill

Customer Purchase Requirements

One-time molding for time savings: Ideal for mold processing, automotive parts, and injection mold frames where composite hole processing eliminates frequent tool changes.
Precise dimensions and clean contours: Essential for automated machine tools and multi-axis CNC applications, requiring stable shape retention and dimensional consistency.
High-strength material compatibility: Critical for alloy steel, stainless steel, and mold steel applications, with emphasis on anti-chipping and wear resistance for batch processing.

Product Performance Highlights (D4-D24 Composite Forming Drill)

Multi-stage integrated structure: Combines D4 to D24 sizes in one tool for CNC efficiency
Precision contour forming: Produces neat surfaces with smooth transitions between steps
High-wear alloy construction: Made from premium hard alloy for durability
Enhanced chip resistance: Optimized cutting edge design maintains stability
Broad material compatibility: Effective for carbon steel, aluminum alloy, stainless steel, and more
