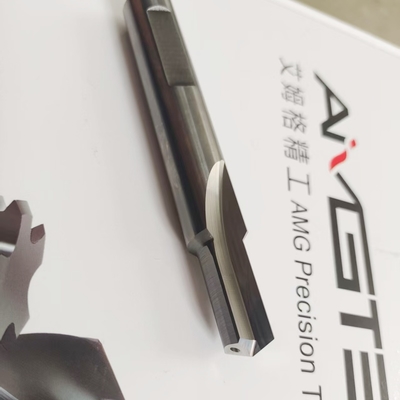

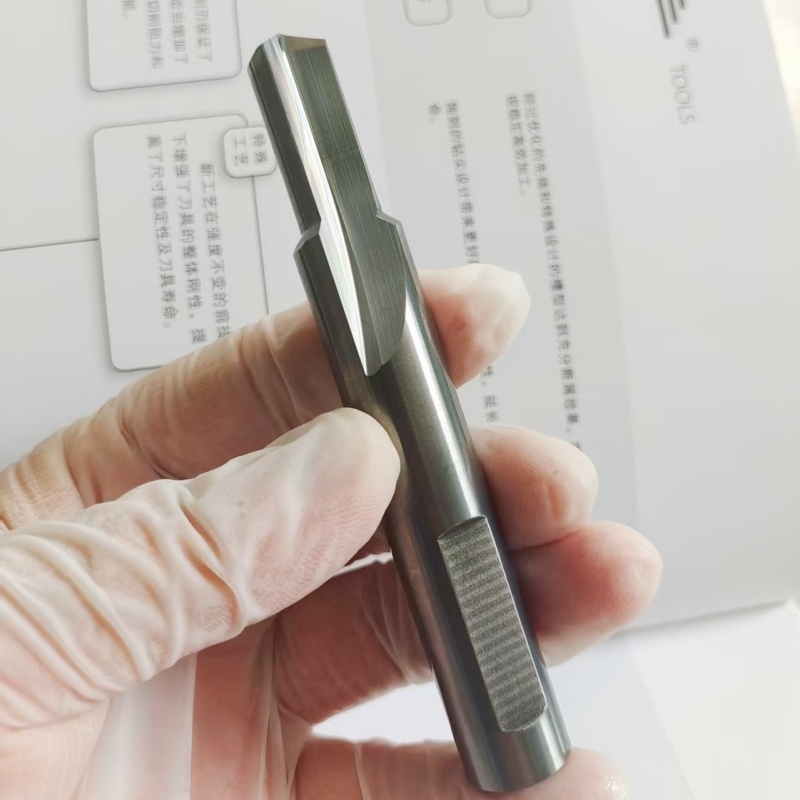

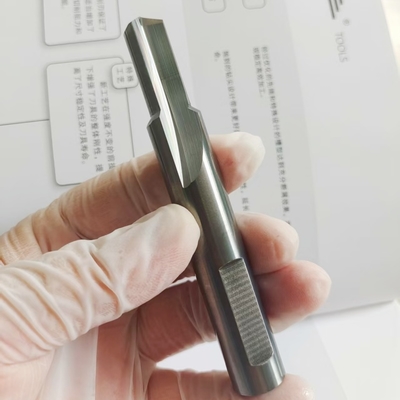

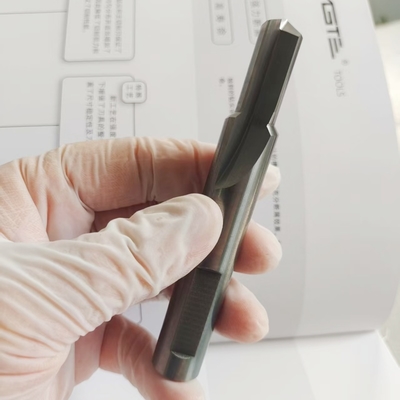

Composite Straight Flute Drill Bit with High Fracture Resistance and Internal Coolant

In mold processing, punching is a critical step, particularly for mold plates where hole positions and hole walls directly affect subsequent assembly and performance. The internally cooled composite straight groove drill (D13 × 19.27 × 15 × 39) from AMG is a high-efficiency solution specifically engineered for the mold industry. This innovative tool can drill multiple holes in a single operation while offering superior cooling and exceptional resistance to chipping.

Scope of Application

This drill bit is ideal for various mold steel materials including 718, P20, and H13. It's designed for processing through holes and stepped holes on mold plates, mold frames, base plates, and similar components.

Technical Specifications

Model	Main Diameter (mm)	Step 1 Depth (mm)	Step 2 Depth (mm)	Overall Length (mm)	Shank Diameter (mm)	Coolant Type	Structure Type
AMG-MP13-19.27-15-39	13	19.27	15	85	12	Internal Coolant (Dual Hole)	Composite Straight Flute

Product Features

Multi-purpose design: Drill multiple holes without frequent tool changes
Exceptional durability: Constructed from AMG high-strength alloy material for reliable performance in hard steel applications
Superior cooling: Internal cooling design enables efficient coolant flow for faster cooling and smoother chip removal
Customizable: Available in various lengths, angles, and hole structures to meet specific requirements

Frequently Asked Questions

Q: Is this drill bit prone to damage when working with mold steel?

A: No, the AMG drill bit features high-toughness hard alloy with specialized coating treatment for enhanced wear resistance and chipping prevention.

Q: Does drilling deep holes cause chip blockage?

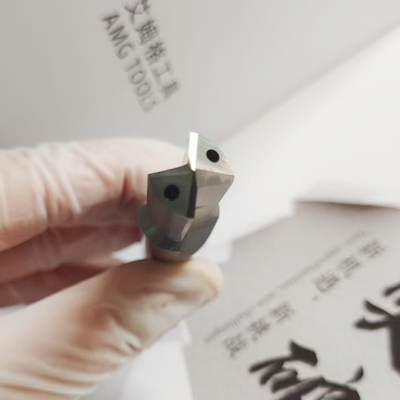

A: No. The drill's dual-channel coolant through holes combined with its straight groove structure ensure smooth chip removal, preventing tool jamming or burning.
