Collet Chuck
Created with Pixso.

B Type CNC Lathe Tools Imperial Guiding Bush Reduction Sleeve Boring bar Sleeves

B Type CNC Lathe Tools Imperial Guiding Bush Reduction Sleeve Boring bar Sleeves

Brand Name: AMG
Model Number: B Type
MOQ: Single Item
Price: Quote on your specification
Payment Terms: T/T,Western Union
Supply Ability: Per your request
Detail Information
Place of Origin:
China
Certification:
ISO9001
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Material:
42CrMo
Hardness:
HRC58-62
Inspection:
100% Inspection
After Warranty Service:
Online Support
Type:
CNC Tool Holder Cnc Milling Arborcnc Adapter With Bt
Precision:
0.003mm
Application:
CNC Milling Machine Milling
Surface:
Fine-finished
Product Name:
Boring Bar Sleeve
Packaging Details:
Per your request
Highlight:

B Type CNC lathe guiding bush

,

Imperial reduction sleeve boring bar

,

Collet chuck boring bar sleeves

Product Description
Product Description
Direction for use
  1. Tool name: boring tool straight sleeve
  2. Change type: straight boring bars from big diameter to small diameter
  3. Different codes: C-3/4,C-1-1/4,C-1"-1/2,C-1"-3/4,C-2",C-2"-1/2,C-3",C-3"1/2
  4. Color: steel bright white
  5. Tool body material: Hard alloy steel
  1. Made from 100% virgin raw material;
  2. Produced with advanced equipments and process;
  3. All products go through in-process and final inspection;
  4. Free online technical service available;
  5. Stable and continuous production ability.
  1. Material:42CrMo
  2. Standard:DIN2080
  3. Full size
  4. Exporting package
  5. Used on milling,drilling
  6. Hardness:50-55HRC
Size Information
A(OD)
B(ID)
C
3/4
1/4 5/16 3/8 1/2
1-1/2
1
3/8 1/2 5/8 3/4
1-3/4
1-1/4
3/8 1/2 5/8 3/4 7/8 1
2-1/8
1-1/2
3/8 1/2 5/8 3/4 7/8 1 1-1/4
2-1/2
1-3/4
1/2 5/8 3/4 7/8 1 1-1/4 1-1/2 1-3/4
3
2
1/2 5/8 3/4 7/8 1 1-1/4 1-1/2 1-3/4 2
3-1/2
2-1/2
2-1/4
4
3
1 1-1/4 1-1/2 1-3/4 2 2-1/4 2-1/2
4-1/2
3-1/2
1 1-1/4 1-1/2 1-3/4 2 2-1/4 2-1/2 3
5-1/4
Company Profile
About US

CHANGZHOU AMG PRECISION TOOL MANUFACTURING CO., LTD. specializes in producing tungsten solid carbide end mills, drill bits, reamers, TCT saw blades, and welded cutting tools for CNC machining. AMG Precision also designs and manufactures various types of customized carbide tools tailored to specific customer requirements.

Our company uses premium domestic and imported carbide rods, combined with advanced German manufacturing technology, to produce high-quality cutting tools. By integrating superior raw materials with precision-engineered equipment, AMG delivers reliable and consistent products that meet even the most demanding machining standards.

We sincerely welcome both new and existing customers to contact us for inquiries and cooperation opportunities. Let AMG provide the perfect cutting solution for your specific machining needs.

AMG is committed to enhancing productivity, reducing production costs, and solving complex cutting challenges with uncompromising machining quality. We proudly serve the manufacturing industry with innovative and high-performance cutting tool solutions designed to meet global industrial demands.

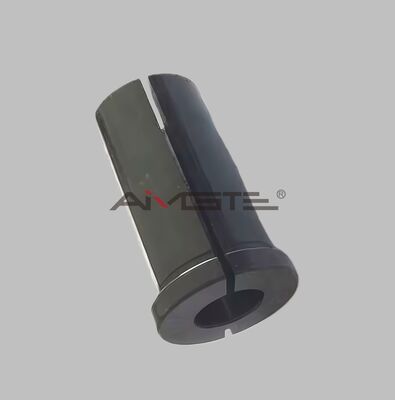

B Type CNC Lathe Tools Imperial Guiding Bush Reduction Sleeve Boring bar Sleeves 0

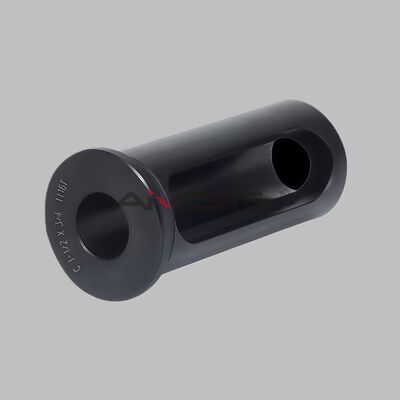

B Type CNC Lathe Tools Imperial Guiding Bush Reduction Sleeve Boring bar Sleeves 1
B Type CNC Lathe Tools Imperial Guiding Bush Reduction Sleeve Boring bar Sleeves 2
FAQ

1.Are you factory or trading company?

Yes, we have factory. We are professional manufacturerwith 20 years of production experience. Besides, we also do some trading.

2. Is free shipping possible?

We don’t offer free shipping service, but we will give you some discount if you buy large qty products.

3.Can you send products to our Forwarder in China?

Yes, if you have forwarder in China, I will glad to send products to him/her.

4.Do you make OEM?

Yes, we do. We have laser machine, can laser your logo and sizes on the body of milling cutter, also can print labels.

5.How about the delivery time?

According to the sizes and quantity, delivery time is different. Usually 3~7days. We can tell you exact inventory state if you need.

B Type CNC Lathe Tools Imperial Guiding Bush Reduction Sleeve Boring bar Sleeves 3
