Stable and Efficient Clay Modeling Tool with Double Cutting Edges

Stable and Efficient Clay Modeling Tool with Double Cutting Edges

Detail Information

Product Description

Detail Information

Highlight:

double-edge clay modeling tool

custom carbide sculpting tool

stable clay cutting tool

Product Description

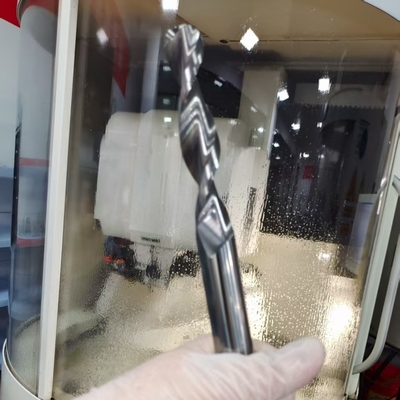

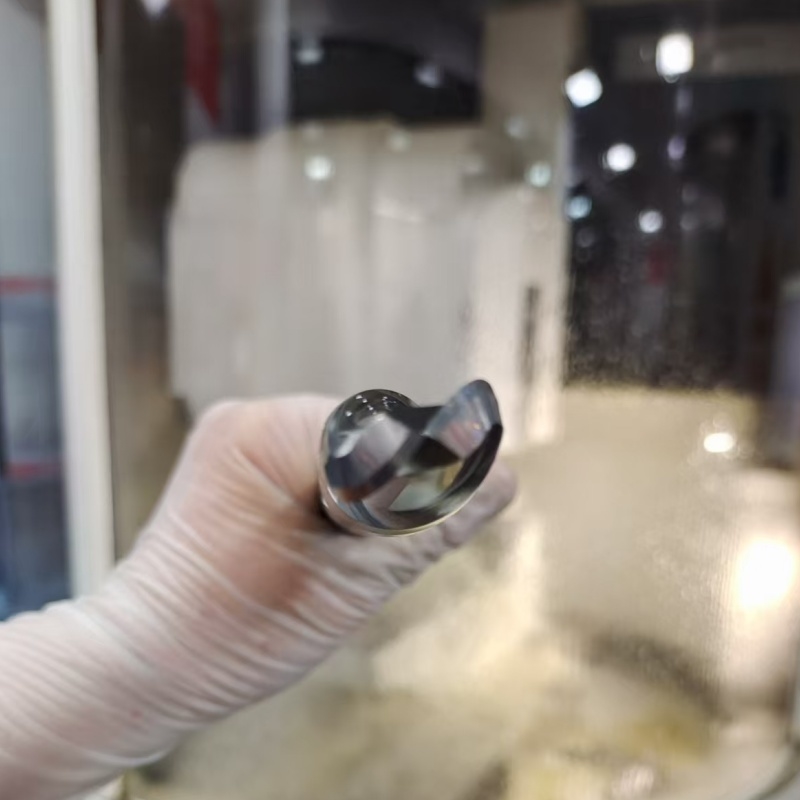

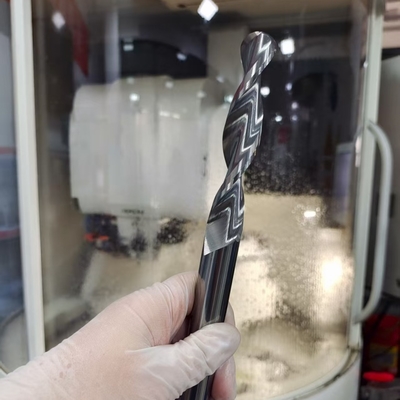

Stable and Efficient Clay Modeling Tool with Double Cutting Edges

In automotive styling, industrial design, and mold development applications, oil sludge and wax materials require specialized cutting tools with high sharpness, smoothness, and material adaptability. The AMG double-edged oil mud knife 20R10-100-2T is engineered specifically for these materials, delivering efficient surface finishing through its double-edged structure and large rounded corner design.

Specifications

Model	Cutter Diameter (mm)	Corner Radius (R) (mm)	Overall Length (mm)	Number of Flutes	Material
20R10-100-2T	20	10	100	2	Alloy Steel / Carbide

Working Principle

This cutting tool features a double-edged symmetrical design that creates smooth cutting paths in low hardness materials. The R10 rounded cutting head ensures natural surface finishing without visible cutting marks. The extended handle design accommodates both manual and CNC operation, enabling rapid polishing of model components.

Performance Advantages

Double-edged cutting: Delivers smooth, efficient cutting performance for large-area finishing
R10 rounded corner: Ideal for large curvature surfaces, ensuring natural transitions on complex curves
100mm handle: Enables deep cavity trimming and extended reach operations
Durable construction: Available in high-quality carbide or high-speed steel (customizable) to prevent chipping or breakage

Frequently Asked Questions

Can this knife be used for metal?

Not recommended. This tool is designed for soft materials including sludge, wax, and plastic prototypes, and is not suitable for cutting metals.

Can different rounded corners be replaced?

Yes. AMG supports customization of various corner radii (R5~R15) to meet different surface requirements.

Can this knife be used with handheld tools?

Yes. The universal straight handle design is compatible with both handheld polishing machines and CNC engraving machines.
